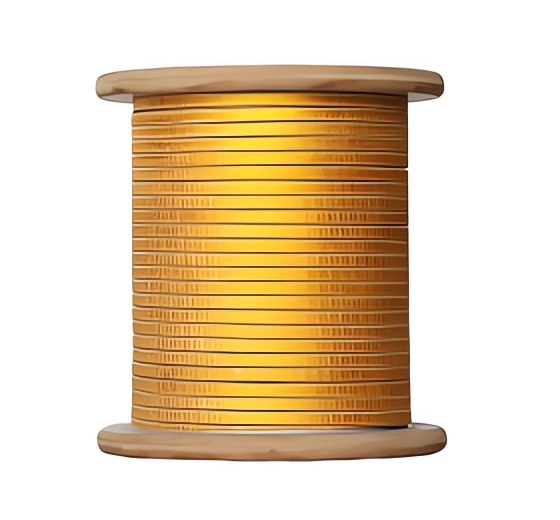

Glass-fiber insulated wires, where a copper or aluminum conductor is wrapped or braided with fine, thermally stable glass fibers (often impregnated with a compatible resin or varnish), form a critical class of magnet wires designed for extreme environments. Their specification and primary uses are fundamentally guided by their size (conductor cross-section or dimensions) and the inherent properties of the base metal.
The size of the conductor directly dictates its current-handling capability and thus its role within an electrical machine. Smaller diameter glass-fiber covered wires are employed in the windings of small to medium-sized motors and generators operating in high-temperature or chemically harsh environments, such as those in industrial furnaces, traction systems, or specialized aerospace equipment. Larger rectangular or square cross-section conductors, insulated with multiple robust layers of glass tape or sleeving, are used in the high-current stator or rotor windings of large heavy-duty motors (for pumps, compressors, and mills) and high-voltage generators, where they must withstand significant mechanical forces, thermal cycling, and potential partial discharge.
The core material choice—copper versus aluminum—further defines the application niche. Glass-fiber insulated copper wire is the premium choice for applications demanding maximum power density, efficiency, and mechanical strength. It is essential in high-performance aerospace motors, high-efficiency industrial drives, and any application where space constraints and reliability under thermal stress are paramount. Glass-fiber insulated aluminum wire, leveraging its light weight and lower cost, finds its purpose in applications where these advantages are critical. This includes the windings of large wind turbine generators, certain types of dry-type transformers, and specific weight-sensitive traction motors, where the reduction in rotating mass or overall system weight justifies the trade-off of using a larger conductor cross-section to achieve the necessary electrical performance.
In all cases, the glass-fiber insulation provides outstanding thermal endurance (often exceeding Class 180°C or 200°C), excellent resistance to moisture, chemicals, and abrasion, and superior flame retardancy. This makes it the insulation system of choice when operating conditions would rapidly degrade standard polymer enamels, ensuring long-term integrity in the most demanding electrical machinery.
